Example 4: Create video

This example demonstrates how to import file and create video with GINCCO_lib using GINCCO_lib.image_to_video.pngs_to_video().

Code Example

Now we will import the library and the grid

# =========================
# IMPORTS
# =========================
import numpy as np
import GINCCO_lib as gc
from netCDF4 import Dataset
from datetime import *
from pathlib import Path
import random

# =========================
# CONFIGURATION
# =========================
tstart = datetime(2010, 7, 1)
tend   = datetime(2010, 8, 31)

path       = '/work/users/tungnd/GOT271/GOT_REF5/OFFLINE/'
session_id = random.randint(10000, 99999)   # unique ID for file naming

# =========================
# LOAD GRID
# =========================
fgrid = Dataset(path + 'grid.nc', 'r')
lat_t = fgrid.variables['latitude_t'][:]
lon_t = fgrid.variables['longitude_t'][:]

Now import all wanted figures on map

# ============================================================
# EXAMPLE: Create multiple maps and combine them into a video
# ============================================================

# Step 1: Import surface salinity
sal_surface = gc.import_surface(path, 'sal', tstart, tend, ignore_missing='False')
print(np.nanmin(sal_surface), np.nanmax(sal_surface))

# Define plotting range based on percentiles
data_min = np.nanpercentile(sal_surface, 5)
data_max = np.nanpercentile(sal_surface, 95)

# Step 2: Generate daily maps (60 days)
for i in range(60):
    tnow = tstart + timedelta(days=i)
    gc.map_draw(
        lon_min=105, lon_max=111,
        lat_min=16.5, lat_max=22,
        title="Surface salinity at %s" % (tnow.strftime('%Y-%b-%d')),
        lon_data=lon_t,
        lat_data=lat_t,
        data_draw=sal_surface[i, :, :],
        path_save="/prod/projects/data/tungnd/figure/",
        name_save="demo_%s_%03.0f" % (session_id, i),
        data_min=data_min,
        data_max=data_max,
    )

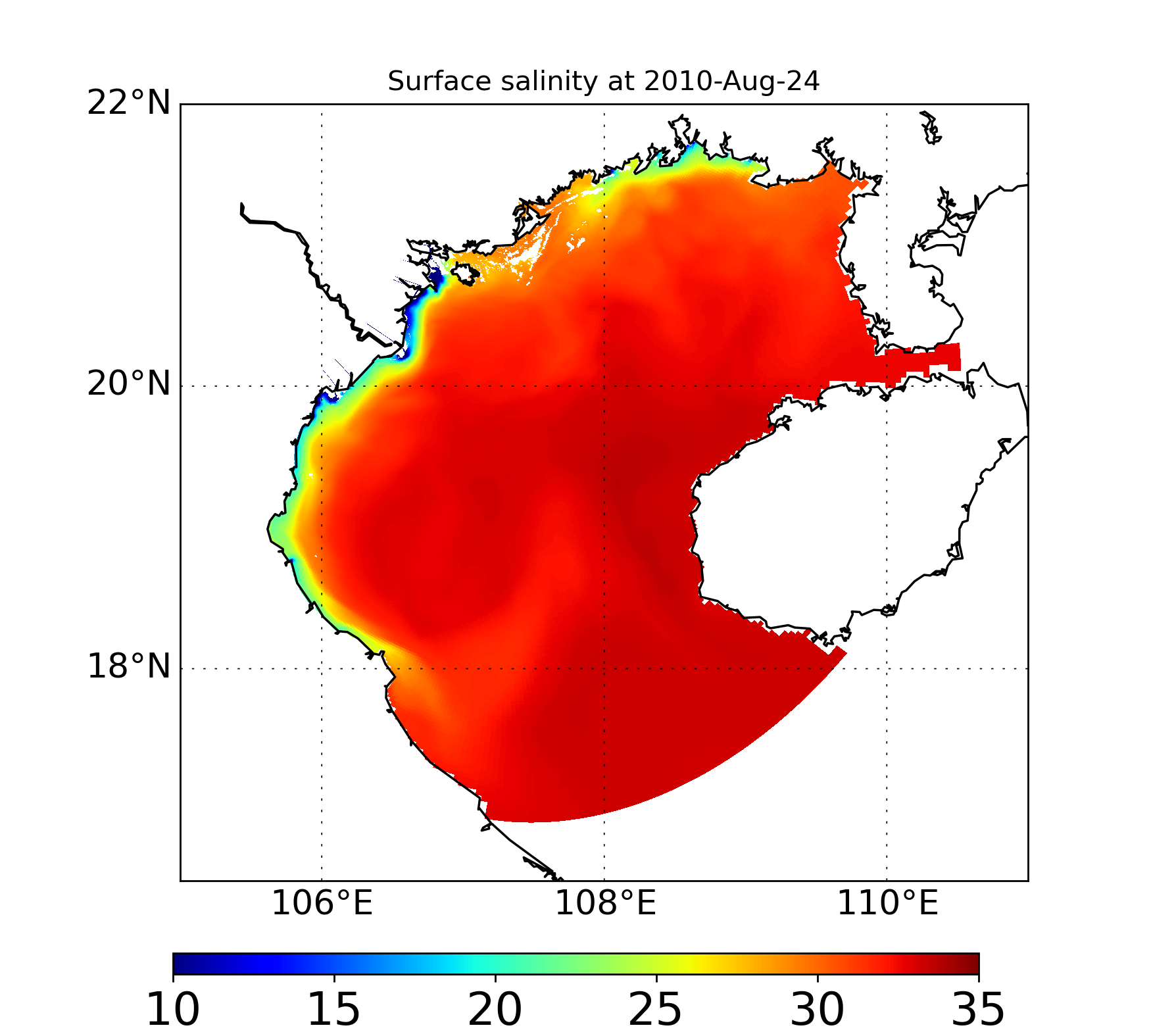

Here is an example of a figure

Now creating a video

# Step 3: Convert saved PNGs into a video
print('Creating video...')
gc.pngs_to_video(
    "/prod/projects/data/tungnd/figure/demo_%s_*.png" % session_id,
    "/prod/projects/data/tungnd/figure/clip_%s.mp4" % session_id,
    fps=5
)

# Step 4: Delete temporary PNG files
for path in Path("/prod/projects/data/tungnd/figure").glob("demo_%s_*.png" % session_id):
    try:
        path.unlink()
        print(f"Deleted: {path}")
    except Exception as e:
        print(f"Error deleting {path}: {e}")
