Example 1: Load a list and create a map#

This example demonstrates how to import file and draw a single map with GINCCO_lib using GINCCO_lib.map_plot.map_draw().

Code Example#

Now we will import the library and the grid

# =========================
# IMPORTS
# =========================
import numpy as np
import GINCCO_lib as gc
from netCDF4 import Dataset
from datetime import *

# =========================
# CONFIGURATION
# =========================
tstart = datetime(2010, 1, 1)
tend   = datetime(2010, 1, 10)

path = '/work/users/tungnd/GOT271/GOT_REF5/OFFLINE/'

# =========================
# LOAD GRID
# =========================
fgrid = Dataset(path + 'grid.nc', 'r')
lat_t = fgrid.variables['latitude_t'][:]
lon_t = fgrid.variables['longitude_t'][:]

Now the first example

# ============================================================

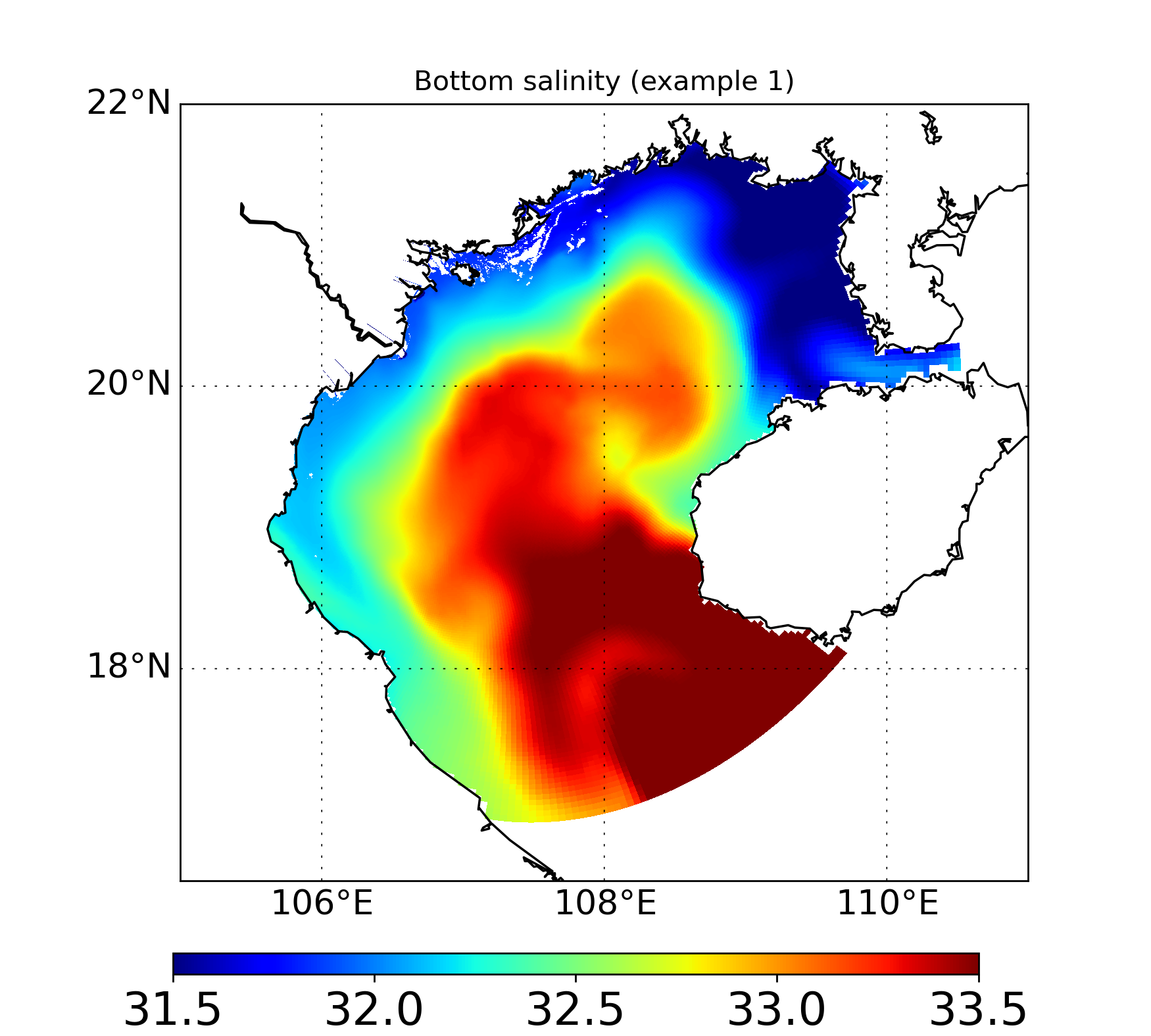

# EXAMPLE 1: import_4D (time, depth, lat, lon) -> plot level 0, day 0
# ============================================================
sal_full = gc.import_4D(path, 'sal', tstart, tend, ignore_missing='False')

gc.map_draw(
    lon_min=105, lon_max=111,
    lat_min=16.5, lat_max=22,
    title="Bottom salinity (example 1)",
    lon_data=lon_t,
    lat_data=lat_t,
    data_draw=sal_full[0, 0, :, :],  # day 0, level 0
    path_save="/prod/projects/data/tungnd/figure/",
    name_save="demo_01"
)
../_images/example1.1_73204.png

Second example

# ============================================================

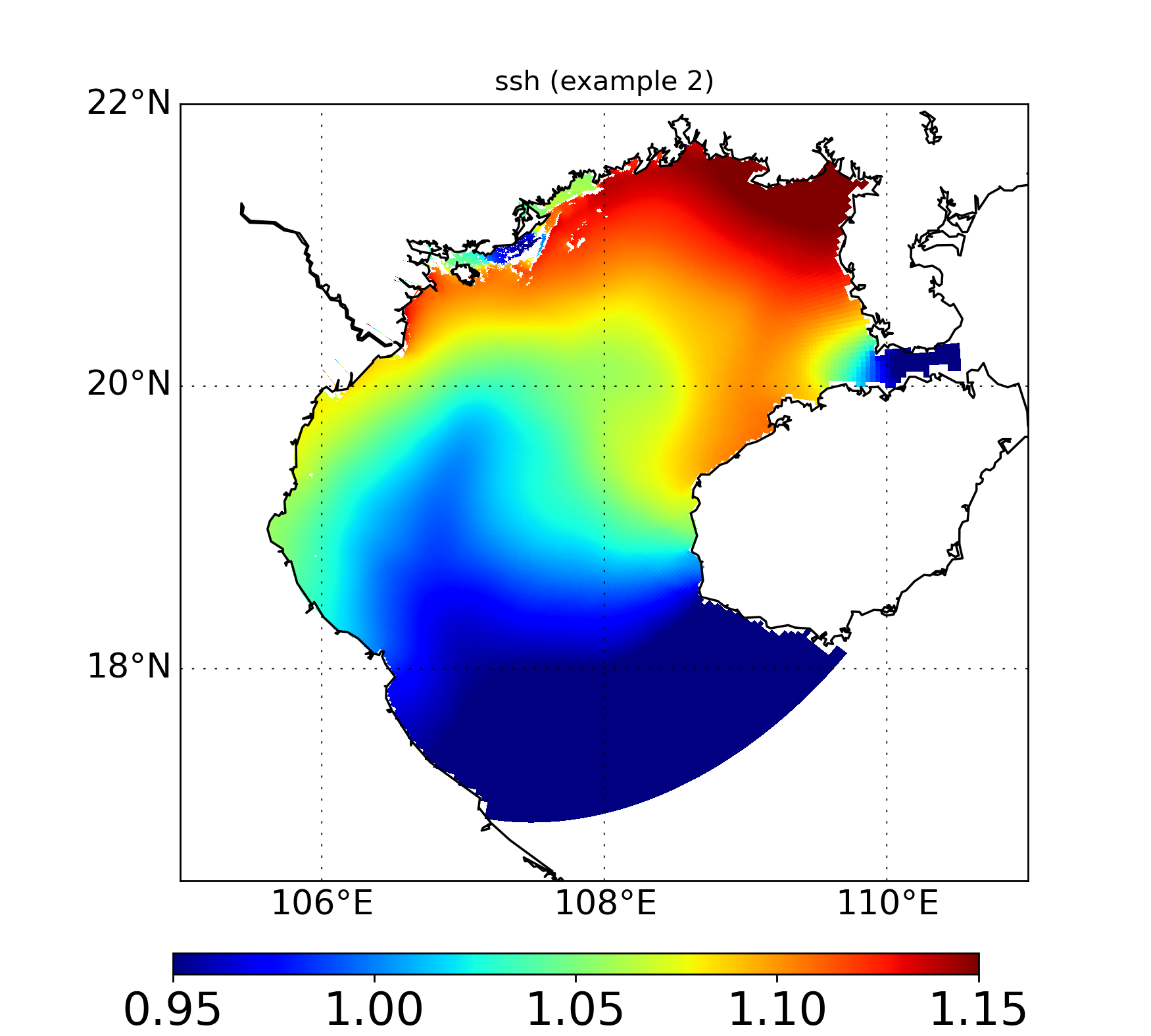

# EXAMPLE 2: import_3D (ssh_ib) -> plot day 0
# ============================================================
ssh = gc.import_3D(path, 'ssh_ib', tstart, tend, ignore_missing='False')


gc.map_draw(
    lon_min=105, lon_max=111,
    lat_min=16.5, lat_max=22,
    title="ssh (example 2)",
    lon_data=lon_t,
    lat_data=lat_t,
    data_draw=ssh[0, :, :],
    path_save="/prod/projects/data/tungnd/figure/",
    name_save="demo_02"
)
../_images/example1.2_11611.png

Third example

# ============================================================

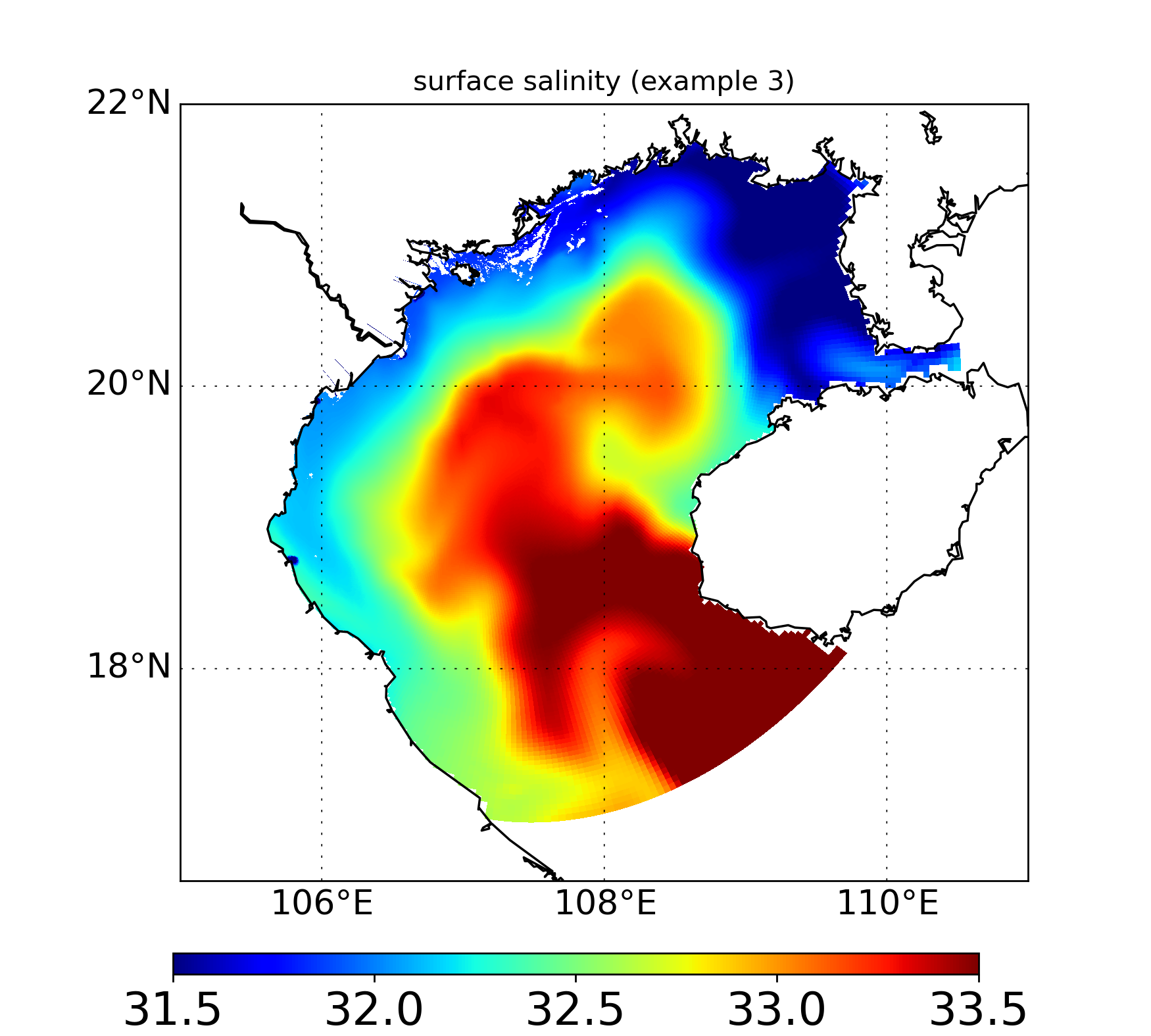

# EXAMPLE 3: import_surface (sal) -> surface salinity, day 0
# ============================================================
sal_surface = gc.import_surface(path, 'sal', tstart, tend, ignore_missing='False')

gc.map_draw(
    lon_min=105, lon_max=111,
    lat_min=16.5, lat_max=22,
    title="surface salinity (example 3)",
    lon_data=lon_t,
    lat_data=lat_t,
    data_draw=sal_surface[0, :, :],
    path_save="/prod/projects/data/tungnd/figure/",
    name_save="demo_03"
)
../_images/example1.3_31743.png

Fourth example

# ============================================================
# EXAMPLE 4: import_layer (sal, layer=10) -> plot day 0
# ============================================================
sal_layer = gc.import_layer(path, 'sal', tstart, tend, 10, ignore_missing='False')

gc.map_draw(
    lon_min=105, lon_max=111,
    lat_min=16.5, lat_max=22,
    title="salinity at layer 10 (example 4)",
    lon_data=lon_t,
    lat_data=lat_t,
    data_draw=sal_layer[0, :, :],
    path_save="/prod/projects/data/tungnd/figure/",
    name_save="demo_04"
)
../_images/example1.4_53651.png

Fifth example

# ============================================================

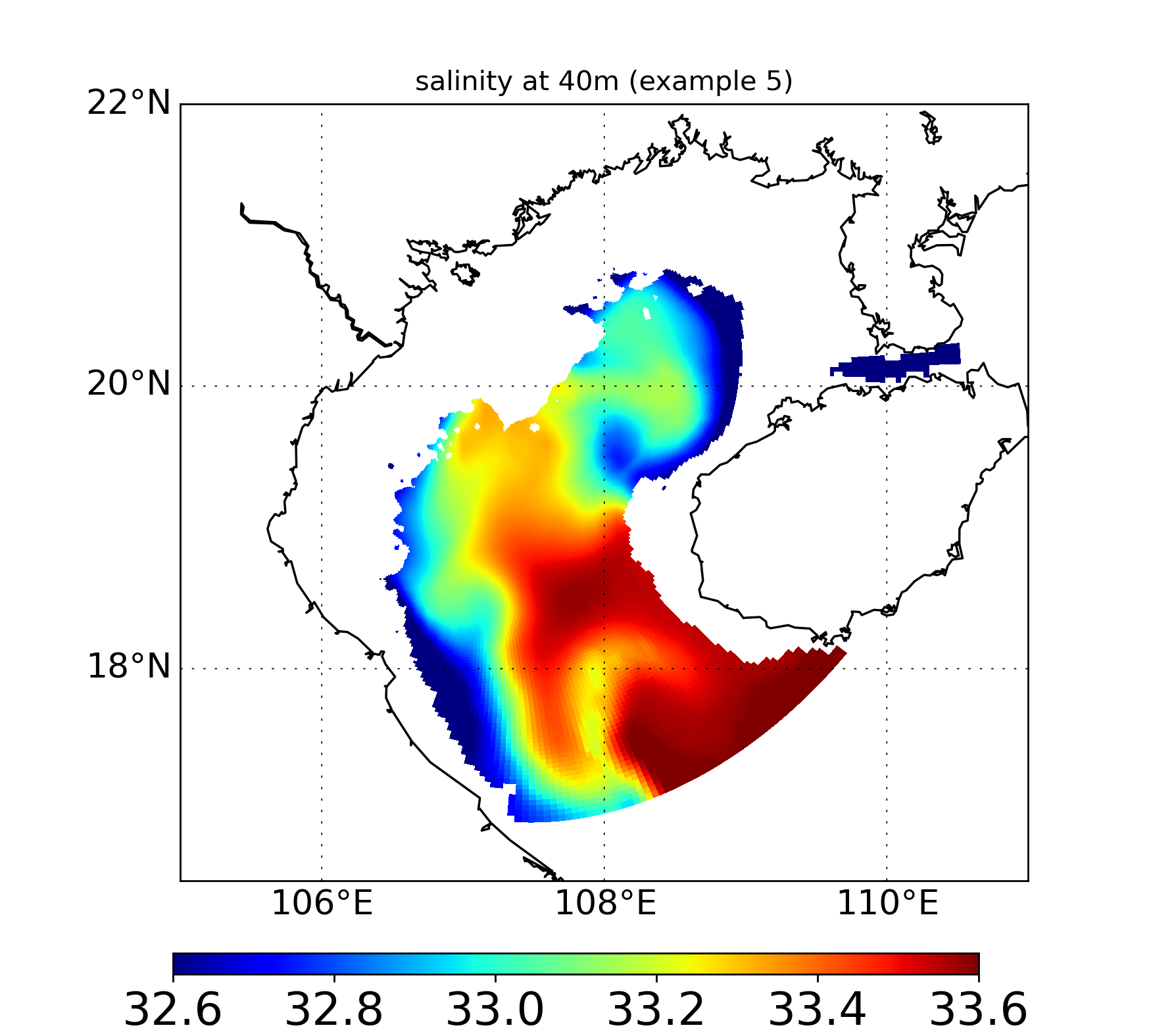

# EXAMPLE 5: import_depth (sal, depth=40m) -> plot day 0
# ============================================================
sal_depth = gc.import_depth(path, 'sal', tstart, tend, 40, ignore_missing='False')

gc.map_draw(
    lon_min=105, lon_max=111,
    lat_min=16.5, lat_max=22,
    title="salinity at 40m (example 5)",
    lon_data=lon_t,
    lat_data=lat_t,
    data_draw=sal_depth[0, :, :],  # day 0
    path_save="/prod/projects/data/tungnd/figure/",
    name_save="demo_05"
)
../_images/example1.5_76246.png
